鋁型材點光源40mm 條形外殼
|
品型號 Product Model |
LC-XQD-F36 |
|
輸入電源 Input Voltage |
DC24V |
|
電源頻率 Freqency Range |
50HZ-60HZ |
|
功率因數(shù) Power Factor |
＞9.0 |
|

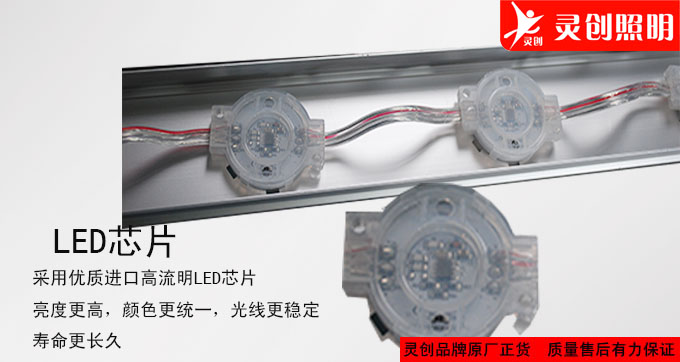

LED驅動方式 LED Driving Mode |
內(nèi)置恒流電源 |
|
LED壽命 LED Life |
50000H |
|
LED顏色 LED Color |
紅，綠，藍，黃，白，暖白，七彩，全彩 |
|
配光方式 Light Design |
LED |
|
光束角 Beam Angle |
|
|
LED功率 LED Power |
12W |
|
LED結點溫升 LED Node Temperature |
＜65°C |
|
工作溫度 Working Temperature |
-40°C- +55°C |
|
防護等級 IP Grade |
IP67 |
|

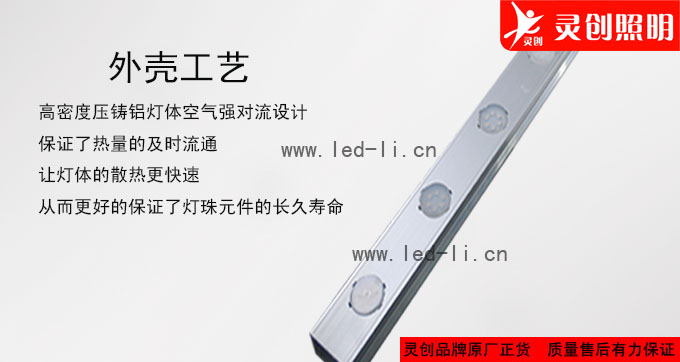

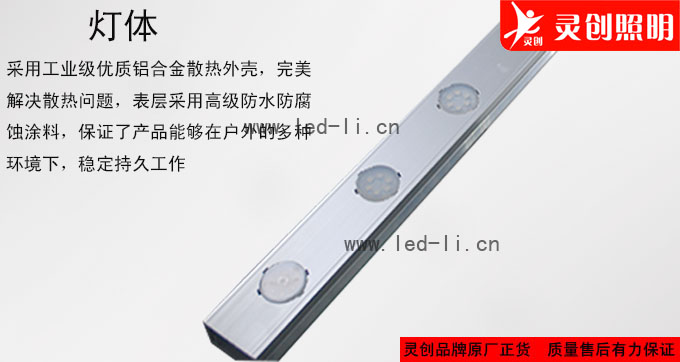

外殼材質 Shell Material |
散熱鋁片 |
|
電源連接線 Power Cables |
棕Brown 藍Blue 地線GND |
|

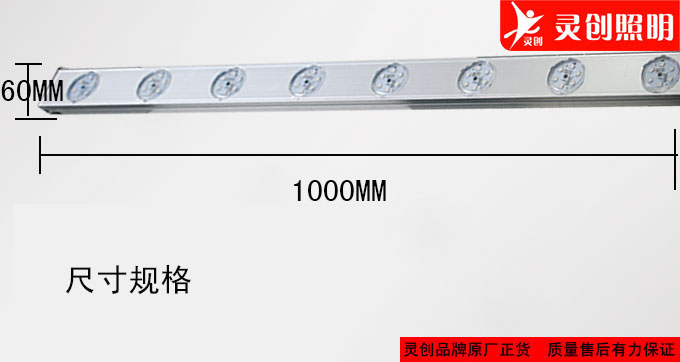

燈具尺寸 SIZE |
長1000*寬60MM |
|
燈具照度 LM |
240LM |
|
產(chǎn)品認證 Product Certification |
|
靈創(chuàng)
