品型號 Product Model

輸入電源 Input Voltage

DC24V

電源頻率 Freqency Range

50HZ-60HZ

功率因數 Power Factor

＞9.0

LED驅動方式 LED Driving Mode

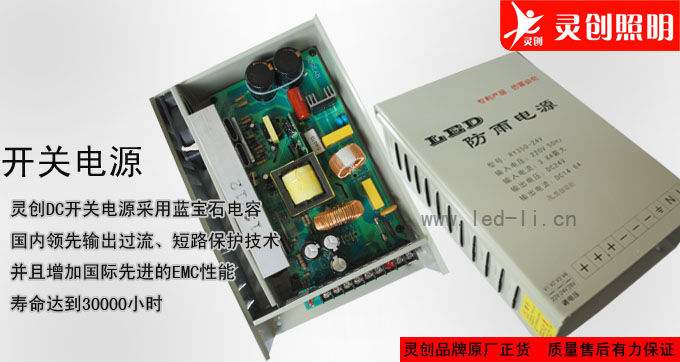

外置恒流電源

LED壽命 LED Life

50000H

LED顏色 LED Color

紅，綠，藍，黃，白，暖白，七彩，全彩

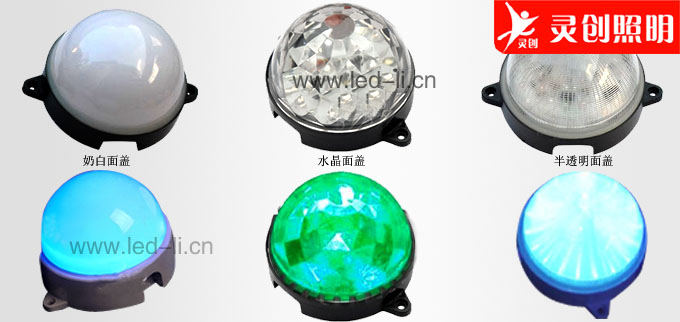

配光方式 Light Design

LED+透光亞克力

光束角 Beam Angle

120

LED功率 LED Power

5W

LED結點溫升 LED Node Temperature

＜65°C

工作溫度 Working Temperature

-40°C- +55°C

防護等級 IP Grade

IP67

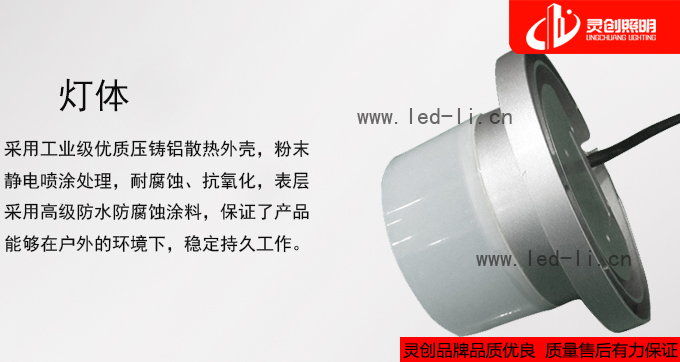

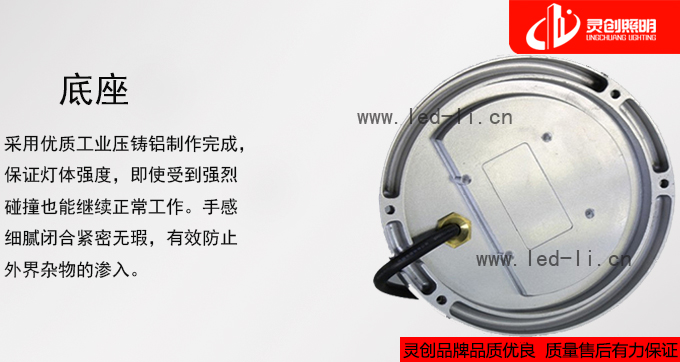

外殼材質 Shell Material

高分子PC外殼

電源連接線 Power Cables

燈具尺寸 SIZE

圓100mm

燈具照度 LM

360LM

產品認證 Product Certification

檢驗報告
